MicroLas

MicroLas

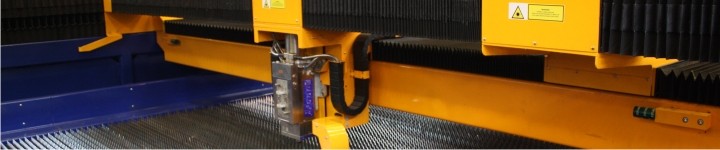

The CO2 laser cutting machine MicroLas is designed for applications with highest demands on accuracy and cutting speed in order to achieve minimum production costs for big series of parts. The sturdy machine frame together with linear guidelines and AC drives provide excellent dynamic properties with positioning speeds reaching up to 60 m/min. Default is an automatic shuttle table.

Technical parameters

Working length
1500 - 6000 mm
Working width
1500 - 3000 mm
Max. number of tool stations
1
Max. thickness of material
according to laser source
Positioning speed
up to 60 m/min (depends on the machine configuration)
