MasterCut Compact

MasterCut Compact

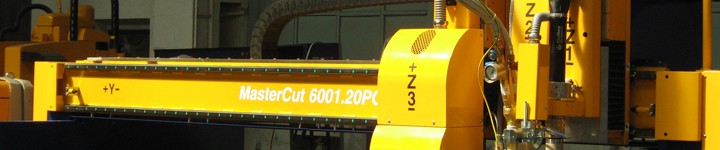

MasterCut Compact is a dynamic, high precision CNC cutting machine suitable for a variety of plasma and oxyfuel cutting jobs. Thanks to its sophisticated design and high quality of components it smoothly provides latest features of plasma technology for a decent price – true contours, small holes, sharp corners and efficient operation. As a fully compact machine it is moveable within workshhop while the pre-assembled delivery significantly shortens the start-up time. Possible sizes of working area reach from 1.5 x 1.5 m to 6 x 2 m.

Technical parameters

Working length 1500, 3000, 4000, 6000 mm
Working width1500, 2000 mm
Max. number of tool stations1 / 2 (width 2000 mm)
Max. thickness of material cut by plasmaaccording to a plasma source
Max. thickness of material cut by oxyfuel100 mm
Positioning speedup to 40 m/min (depends on version)
Positioning accuracy± 0,08 mm according to DIN 28 206
